Knowing how to read transmission dipstick correctly is one of the most important yet overlooked vehicle maintenance skills. Transmission problems are among the most expensive automotive repairs in the United States, and many of them start with low or contaminated transmission fluid–something you can often catch early with a simple check.
This guide explains how to read a transmission dipstick properly, what the fluid level and color mean, when to check it, and how to avoid common mistakes. Whether you drive a sedan, SUV, or pickup truck, this guide is designed to be practical, accurate, and easy to follow.
Why Checking Transmission Fluid Matters
Your transmission depends on fluids to:
- Lubricate internal components
- Maintain pressure in the hydraulic system
- Cool moving parts that move cool
- Ensure smooth gear shifting
If the level of fluid isn’t enough, high or dirty, the car could experience delays in shifting, gears that slip or overheating. It could also cause long-term damage.
Knowing what to look for on the dipstick on the transmission can help prevent problems before they turn into expensive repairs.
What Is a Transmission Dipstick?
A transmission dipstick can be described as a steel or plastic rod which permits you to examine:
- Transmission fluid level
- Condition of the fluid (color and odor)
It’s similar to a dipstick for engine oil however it is used for a different purpose.
Where to Find the Transmission Dipstick
In the majority of automobiles that are sold within the U.S., the dipstick is:
- It is located at the rear in the back of the engine compartment
- The label reads “Transmission” or marked with the handle in yellow or red
Some of the latest vehicles do not have a dipstick, and require a new procedure to be followed, which will be discussed later in this manual.
When to Check Transmission Fluid
The timing is crucial when you are learning how to identify a dipstick for transmission fluid.
Most Vehicles Require:
- Engine is running
- The transmission warmed up
- Vehicle is parked on a level surface
Always read the owner’s manual first, as the procedures may differ by manufacturer.
Step-by-Step: How to Read a Transmission Dipstick Correctly
Step 1: Warm Up the Vehicle
Take a drive for about 10 minutes until the transmission fluid is at operating temperature.
Step 2: Park on Level Ground
Use the parking brake to continue to run the engine unless your manual states otherwise.
Step 3: Shift Through Gears
By putting your brake pedal firmly in:
- The gear selector is moved through all gears
- Pause for a few seconds in each position
- Return to “Park” or “Neutral”
The fluid circulates through the transmission.
Step 4: Locate and Remove the Dipstick
Take the dipstick out straight. Be aware that it may be warm.
Step 5: Wipe the Dipstick Clean
Make use of a clean, lint-free cloth or a paper towel.
Step 6: Reinsert Fully
Insert the dipstick to the fullest extent, and then take it out again.

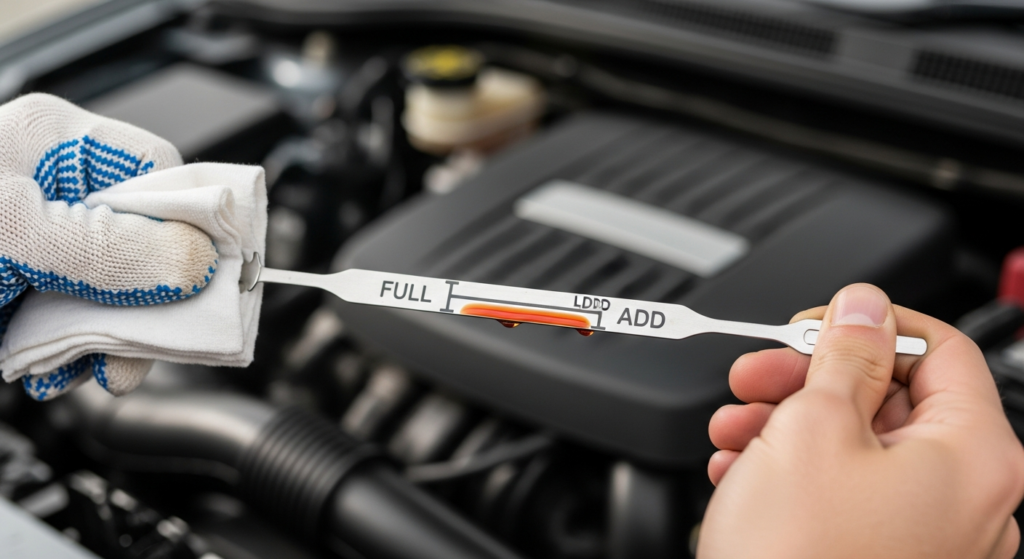

Step 7: Read the Fluid Level
Take note of where the liquid is positioned on the dipstick marks.
Understanding Dipstick Markings
Most dipsticks include:
- “Full” and “Add” lines
- “Hot” and “Cold” indicators
Hot contrasts with. Cold Readings
- Cold Range Useful when the fluid is cool
- The Hot Range is used after the vehicle has warmed up
For accuracy, use the readout that is hot unless otherwise instructed.

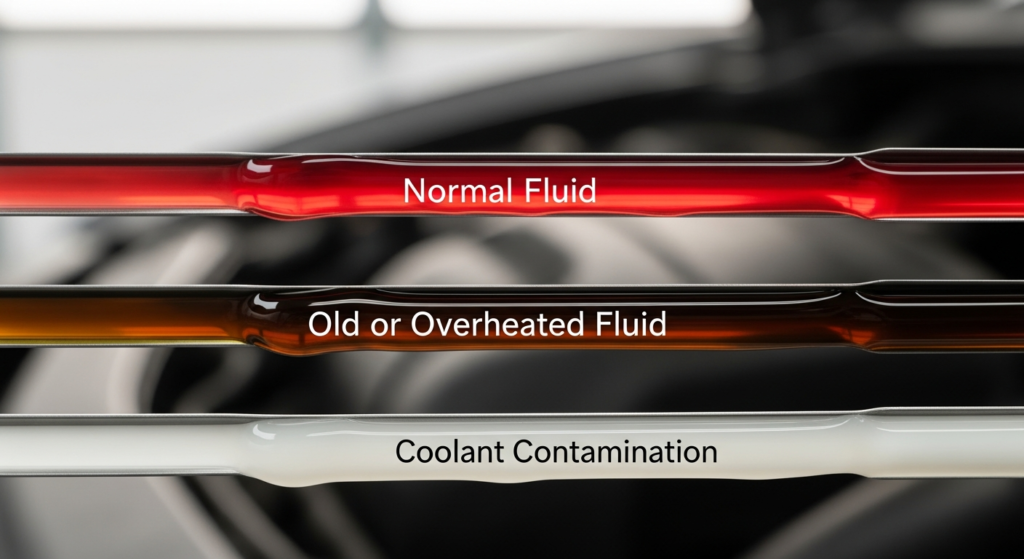

How to Read Transmission Fluid Dipstick Color
The hue of your fluid can tell you something about the health of your transmission.
Normal Fluid
- Light pink or bright red
- Clean and clear
Warning Signs
- Black or dark brown Old or overheated fluid
- Smoke smell Risk of internal damage
- Milky appearance: Possible coolant contamination
If the fluid doesn’t appear or smell right A professional inspection is suggested.
Common Mistakes to Avoid
Many drivers believe they are aware of the way to interpret a dipstick for their transmission however, even small errors can result in incorrect readings.
Beware of these mistakes:
- Inspecting the oil with your engine shut off (unless otherwise)
- The transmission isn’t warming up
- The transmission must be filled to the top.
- Making use of the wrong kind of transmission fluid
Overfilling is just as dangerous as running out of fuel.
What to Do If the Fluid Level Is Low
If the fluid’s concentration is less than the range of recommended values:
- Make sure to use only the transmission fluids as specified in the owner’s handbook
- Pour in the fluid slowly with the funnel
- Make sure to check the level after each tiny increment
Don’t mix or guess different types of fluids.
What If Your Vehicle Has No Dipstick?
A lot of the newer cars offered within the U.S. use sealed transmissions.
In These Cases:
- Fluid checks require the use of a scanner or lift tool
- Procedures for temperature-specific temperatures must be adhered to
- Professional services are often highly recommended
If your vehicle is not equipped with a dipstick, check the service guidelines of the manufacturer.
How Often Should Transmission Fluid Be Checked?
An excellent rule-of-thumb
- Every 30,000 miles, check the mileage.
- Check for any shifting issues.
- Make sure you are aware of towing and heavy driving conditions.
Routine inspections prolong the life of transmissions and increase the reliability of the transmission.
Signs You May Have a Transmission Fluid Problem
Even if it is your knowledge of how to identify a dipstick on the transmission fluid be aware of signs like:
- Delay or hard to shift
- Slipping gears
- Unusual noises
- Warning about overheating the transmission
These signs shouldn’t be overlooked.
Manual vs. Automatic. manual Transmission dipsticks
Automatic Transmissions
- The majority of models include dipsticks (older models)
- Make sure the engine is running to ensure accurate reading
Manual Transmissions
- Oft, there aren’t dipsticks
- Make use of a filler plug instead
Always verify your transmission’s type prior to checking the fluid.
Why This Skill Saves Money
Repairs to transmissions within America U.S. can cost thousands of dollars. The ability to learn about how to recognize a dipstick of the transmission allows you to:
- Be aware of issues before they become a problem.
- Avoid breakdowns that aren’t needed.
- Maintain resale value
It’s among the most simple preventative maintenance actions drivers can do.
Frequently Asked Questions (FAQs)
What can I do to tell when my transmission fluid is depleted?
The level of the fluid will be lower than “Add” or minimum mark on the dipstick.
Do I need to drive with lower transmission fluid?
A vehicle that is not properly lubricated can cause severe harm and should be avoided.
Do you think transmission fluid should be checked cold or hot?
A majority of cars require an immediate check-up however it is best to confirm this using the owner’s guide.
Does transmission fluid go bad?
Yes, it does degrade with time because of friction and heat.
Final Thoughts
Understanding how to read a transmission dipstick is a simple but powerful skill that every U.S. driver should know. With just a few minutes and basic attention, you can protect one of the most expensive components in your vehicle.
Conclusion
Checking your transmission fluid regularly can ensure smooth performance helps avoid costly repairs and helps keep your vehicle operating efficiently. If you follow the right steps and recognizing warning signals that you can have confidence and control over the maintenance of your vehicle.
